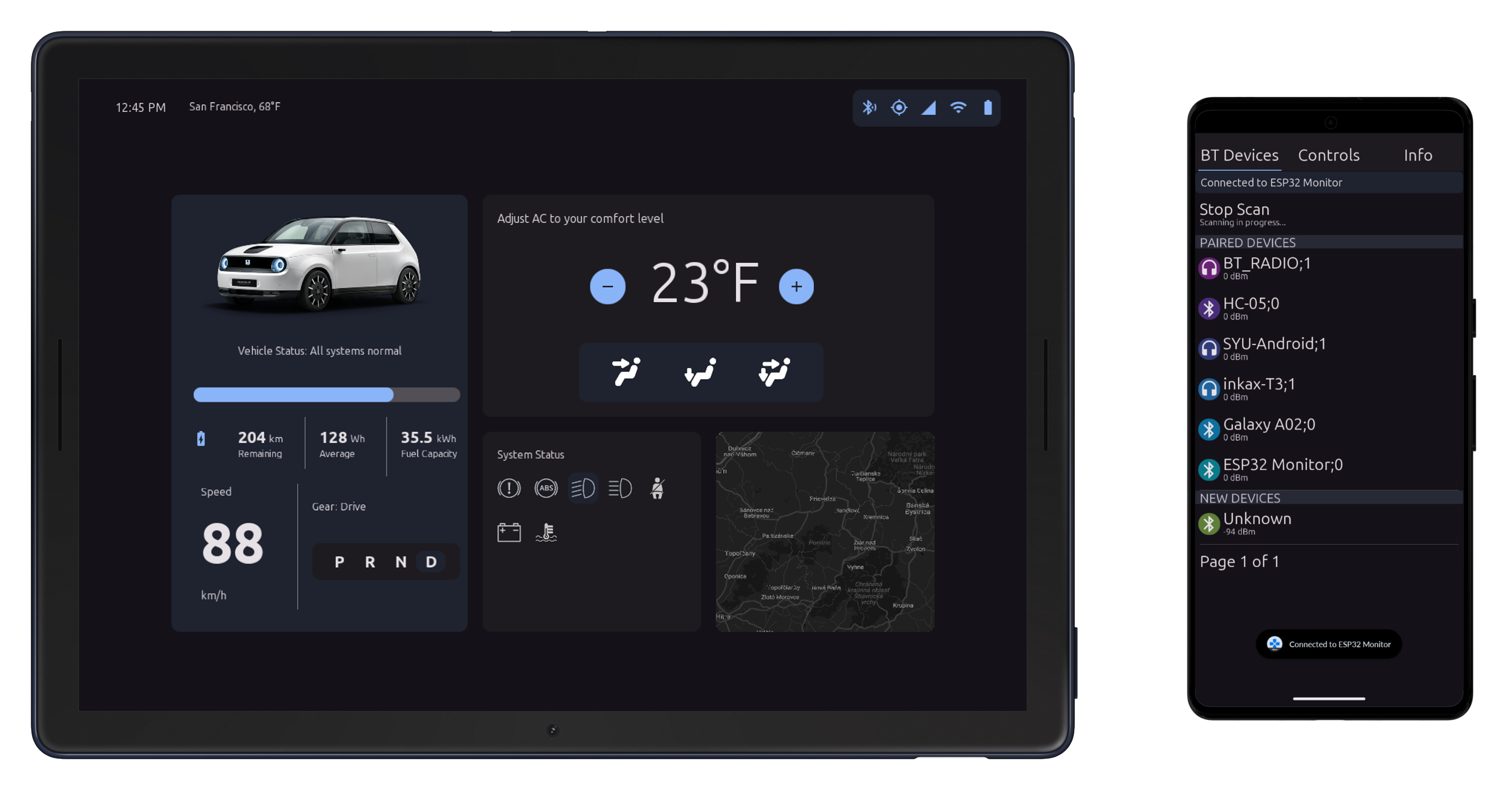

AromaOS serves as the reference automotive Human-Machine Interface (HMI) for the AromaUI framework. It demonstrates a high-performance, multi-layered dashboard featuring real-time telemetry integration, voice control, and a complex Z-order scene graph suitable for 1280x800 infotainment displays.

Application Lifecycle and Main Loop

The application entry point in main.c orchestrates the initialization of global state, resource managers, and asynchronous processing threads.

Initialization Sequence

Global State: init_app_state() allocates the AppState structure and initializes mutexes for thread-safe access to CAN and Voice data examples/car_infotainment/main.c24-28 examples/car_infotainment/app_state.c30-66
UI & Fonts: aroma_ui_init() starts the core engine, followed by init_fonts() which loads multiple Ubuntu and Icon font instances into the AppState for specific UI roles (Clock, Settings, Tabs) examples/car_infotainment/main.c37-52 examples/car_infotainment/font_manager.c24-50
Telemetry Bridge: Attempts to open a POSIX shared memory segment for high-speed vehicle data examples/car_infotainment/main.c68-84
UI Construction: Builds the hierarchical scene graph by calling build_vehicle_view, build_settings_ui, and build_tabsexamples/car_infotainment/main.c85-91
Threads: Spawns start_voice_control_thread() and start_can_thread() to handle asynchronous I/O examples/car_infotainment/main.c106-110
Main Loop: Enters main_loop() to process events and render frames examples/car_infotainment/main.c112

Main Loop Diagram

The following diagram illustrates the relationship between the main execution thread and the background data providers.

flowchart LR subgraph subGraph1 ["Background Threads"] CAN["CAN Thread (SocketCAN)"] VOICE["Vosk Voice Thread"] SHM["Telemetry Bridge (SHM)"] end subgraph subGraph0 ["Main Thread (main_loop)"] A["aroma_ui_poll_events()"] B["process_voice_commands()"] C["update_telemetry_ui()"] D["aroma_ui_render_frame()"] end A --> B B --> C C --> D D --> A CAN -->|"pthread_mutex (can_mtx)"| C VOICE -->|"pthread_mutex (voice_mtx)"| B SHM -->|"Seqlock Read"| C

Sources:examples/car_infotainment/main.c19-125 examples/car_infotainment/app_state.h153-155 examples/car_infotainment/voice_handler.h20

Telemetry Bridge (Seqlock Shared Memory)

AromaOS utilizes a high-performance telemetry bridge defined in shared_memory_bridge.h to ingest data from external vehicle simulators or real hardware.

Seqlock Implementation

The bridge uses a Seqlock (Sequence Lock) mechanism to allow lock-free reads from the UI thread while a writer process (like vehicle_simulator.py) updates the data.

Writer: Increments seq_write to an odd value before writing and an even value after finishing examples/car_infotainment/shared_memory_bridge.h5-9
Reader: telemetry_bridge_read() performs a spin-lock check. It reads seq_write, performs a memcpy of the telemetry_frame_t, and then re-reads seq_write. If the values match and are even, the read is considered atomic examples/car_infotainment/shared_memory_bridge.h195-203

Data Structure

The telemetry_frame_t carries critical vehicle metrics:

speed_kmh_x10: Speed in km/h (scaled by 10) examples/car_infotainment/shared_memory_bridge.h89
battery_soc_pct: State of Charge percentage examples/car_infotainment/shared_memory_bridge.h96
flags: Bitmask for FLAG_READY_TO_DRIVE, FLAG_LOW_BATTERY, etc examples/car_infotainment/shared_memory_bridge.h107

Sources:examples/car_infotainment/shared_memory_bridge.h65-112 examples/car_infotainment/main.c70-84

Vehicle View and Z-Layer Hierarchy

The primary HMI interface is the vehicle_view, which manages a complex stack of visual elements using AromaUI's Z-index system.

Z-Layer Definitions

Layers are defined in app_state.h to ensure consistent depth sorting examples/car_infotainment/app_state.h13-25:

Layer Constant	Value	Purpose
`Z_LAYER_BACKGROUND`	1	Road and environmental backgrounds
`Z_LAYER_VEHICLE_IMAGE`	2	The main car sprite (`car.png`)
`Z_LAYER_VEHICLE_OVERLAYS`	3	Dynamic labels (Speed, Range)
`Z_LAYER_STATUS_BAR`	100	Top-level system icons
`Z_LAYER_VOICE_CARD`	999998	Voice assistant modal

Key Components

Gear Selector: Uses a two-card system (gear_bg_card and gear_fg_card). The foreground card is animated to slide over the active gear letter (P, R, N, D) examples/car_infotainment/vehicle_view.c115-132
Interactive Labels: Includes "Frunk" and "Trunk" labels that act as touch targets for vehicle actuators examples/car_infotainment/vehicle_view.c156-170
Battery Diagnostics: The battery_diagnostics() callback triggers a transition that hides standard vehicle info and displays a detailed battery health overlay using AROMA_ANIM_SLIDE_Y and AROMA_ANIM_FADEexamples/car_infotainment/vehicle_view.c26-60

Sources:examples/car_infotainment/vehicle_view.c61-170 examples/car_infotainment/app_state.h13-25

Voice Control System (Vosk Integration)

AromaOS features an integrated voice assistant using the Vosk API for offline speech-to-intent processing.

Intent Processing Pipeline

The voice thread captures audio via ALSA at 16kHz and processes it through process_intent()examples/car_infotainment/voice_control.c39-144

Wake Word: Listens for "hey aroma" or a manual trigger via trigger_manual_wake()examples/car_infotainment/voice_control.c40 examples/car_infotainment/voice_control.c35-37
Keyword Mapping: Uses strstr to map phrases to UI actions (e.g., "dark mode" calls queue_voice_theme(1)) examples/car_infotainment/voice_control.c66-70
UI Feedback: Commands are queued via queue_voice_action(), which the main loop picks up to update state.voice_status_labelexamples/car_infotainment/voice_control.c14-18
TTS: Uses pico2wave and aplay to provide audible confirmation examples/car_infotainment/voice_control.c27-33

flowchart LR subgraph subGraph2 ["UI Thread"] PROC["process_voice_commands()"] UI["aroma_label_set_text(voice_status_label)"] end subgraph subGraph1 ["Action Queueing"] Q1["queue_voice_action()"] Q2["queue_voice_theme()"] end subgraph subGraph0 ["Audio Pipeline"] MIC["ALSA Capture (16kHz)"] VOSK["VoskRecognizer"] INTENT["process_intent()"] end MIC --> VOSK VOSK --> INTENT INTENT --> Q1 INTENT --> Q2 Q1 --> PROC PROC --> UI

Sources:examples/car_infotainment/voice_control.c146-160 examples/car_infotainment/voice_handler.h14-20

Settings UI and Theme Management

The settings interface demonstrates dynamic layout and theme switching.

UI Structure

Slide Animation: The settings panel is built into state.settings_panel_node and is toggled using AROMA_ANIM_SLIDE_X for a smooth transition from the side of the screen examples/car_infotainment/app_state.h30
System Info: Displays hardware telemetry by reading from /proc (e.g., CPU usage, memory) and formatting it into AromaUI ListView widgets.

Theme Manager

The theme_manager.c handles global style shifts. When state.dark_theme_enabled is toggled:

The AromaTheme structure in state.theme is updated examples/car_infotainment/app_state.h141
aroma_style_apply_theme_colors() is called recursively on the root window to update all active nodes.
The backroad image source is swapped between backroad_blur.png and backroad_dark.pngexamples/car_infotainment/vehicle_view.c69-78

Sources:examples/car_infotainment/main.c44 examples/car_infotainment/theme_manager.c1-20 examples/car_infotainment/app_state.h145

The application uses a specialized tab manager to switch between the high-level views.

Tab Bar: Located at the bottom of the screen (WIN_H - 80), it uses aroma_ui_tabs_with_icons to provide navigation between "Vehicle View" and "Settings" examples/car_infotainment/tabs_manager.c6-10
Content Switching: aroma_tabs_set_content() associates specific container nodes (like state.vehicle_view_root) with tab indices examples/car_infotainment/tabs_manager.c15-16
Z-Index: The tab bar is kept at Z_LAYER_MAP_BUTTON (15) to remain visible above the vehicle background but below top-level overlays examples/car_infotainment/tabs_manager.c13

Sources:examples/car_infotainment/tabs_manager.c4-25 examples/car_infotainment/app_state.h13-25

Easter Egg: Developer Mode

AromaOS includes a hidden "Developer Mode" triggered by a specific interaction sequence (the "Easter Egg").

Trigger: Usually activated by multiple taps on a specific UI element (e.g., the build info version string).
Functionality: When active, build_easter_egg_ui() injects an overlay (state.easter_egg_overlay) that provides raw CAN bus logs and advanced rendering statistics examples/car_infotainment/main.c90
Implementation: It utilizes aroma_node_set_hidden() to toggle visibility of the debug console without rebuilding the scene graph examples/car_infotainment/app_state.h136-137

Sources:examples/car_infotainment/main.c90 examples/car_infotainment/app_state.h136-137 examples/car_infotainment/easter_egg.c1-50
